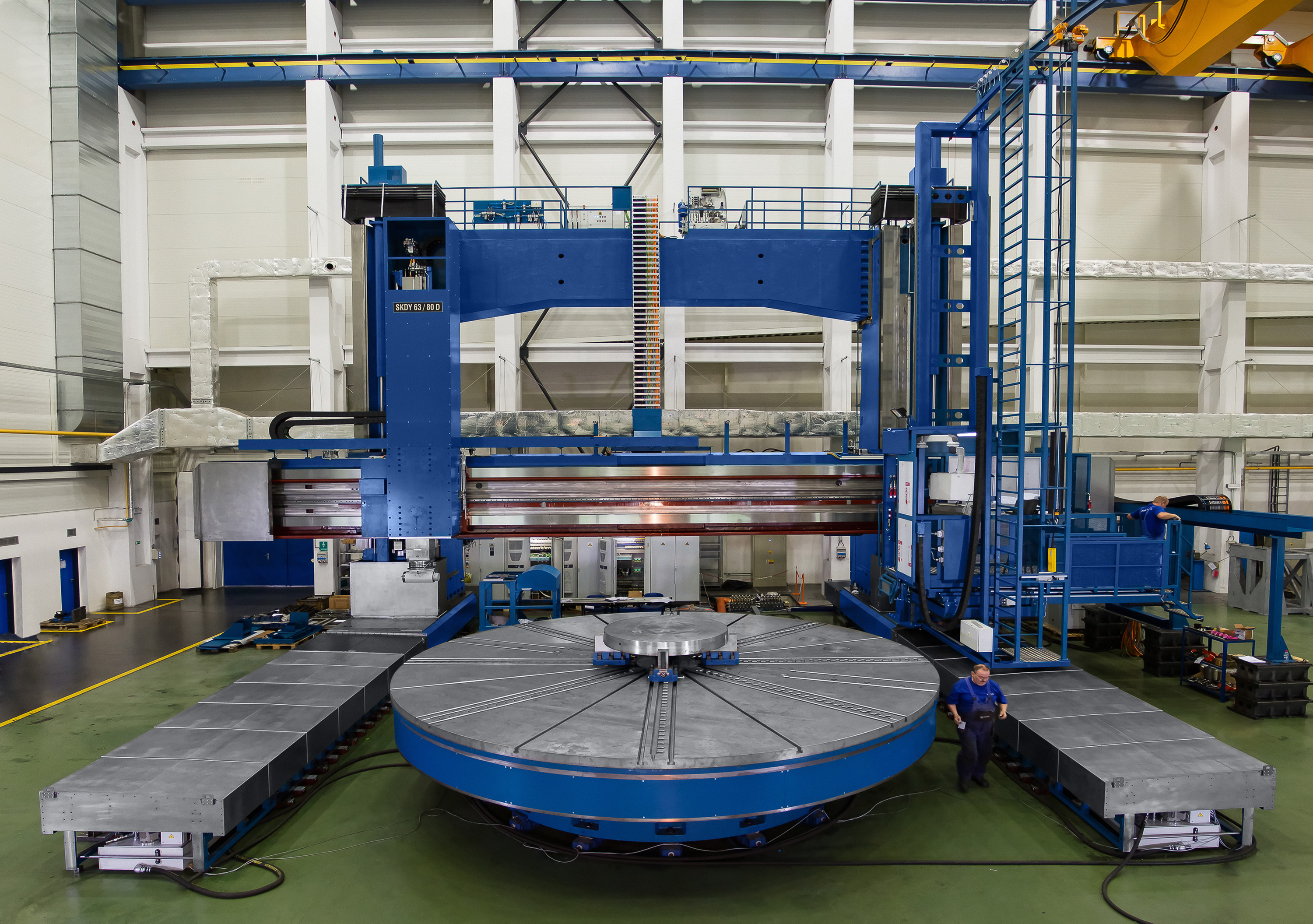

The SKDY vertical turning and boring lathe is designed for use in very large machining and flexible production which require a gantry Y axis movement. The SKDY is a large super heavy-duty performance VTL from CKD BLANSKO.

The SKDY turning table incorporates a hydrostatic bearing for very heavy workpiece weight carrying up to 704,000 lbs. (320,000 kg). Along with the use of very large hydrostatic box ways and its double column, symmetrical head and large cross section ram design keeps it best in class for very large and heavy turning requirements.

The SKDY can also be equipped with a live milling and drilling spindle to further broaden its capabilities and if you add the “B” axis head it is the closest to one and done machine for large part turning and milling available.



General Specifications

Working Range Table Size 157" to 315" (4,000 x 8,000 mm)
Maximum Workpiece Diameter 197" to 394" (5,000 - 10,000 mm)
Maximum Workpiece Height 79" to 236" (2,000 - 6,000 mm)
Gantry Travel - Y Axis 157" to 256" (4,000 - 6,500 mm)
Table Table Speed 125 - 25 RPM*
Table Power 190 HP (142 kW)
Turning Weight Capacity 66,000 - 704,000 lbs. (30,000 - 320,000 kg)
Ram (Rail Head) Ram Size 13.4" x 13.4" (340 x 340)
Ram Size - Option 15.7" x 15.7" (400 x 400 mm)
Ram Travel 79" to 126" (2,000 to 3,200 mm)
Live Milling Spindle Spindle Speed 4,000 RPM
Spindle Power 80 HP (60 kW)
Automatic Tool Changer Capacity 15 - 96 tools
*smallest machine to largest

Available Options:

  • Live Spindle with Table C axis
  • B Axis Head
  • Coolant Systems
  • Tool Probe - with and without laser measuring
  • Part Probe
