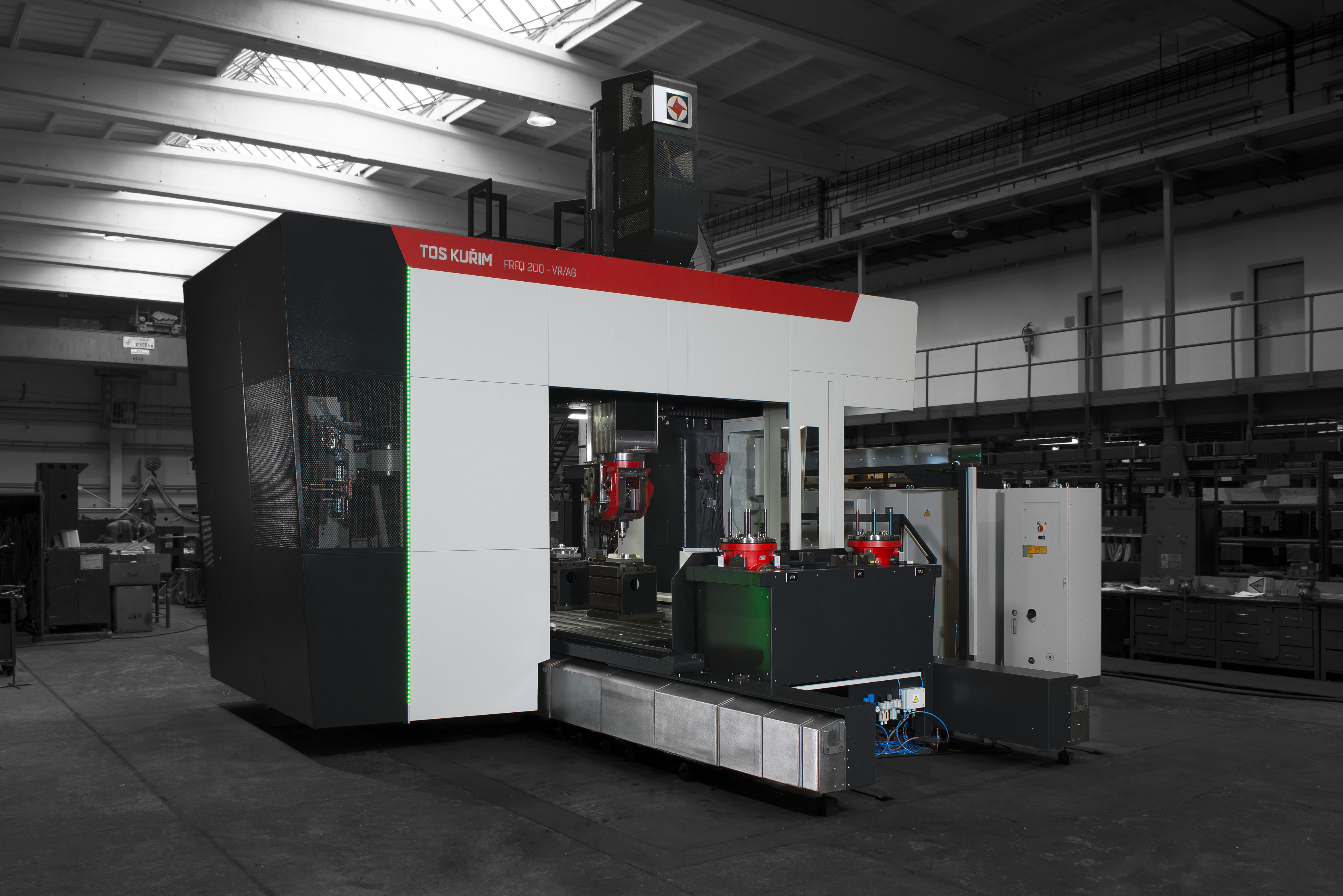

The TOS KURIM FRF series of Traveling Gantry Machines utilize 100% linear guide way system for superior heavy-duty cutting over the full volume of the work cube

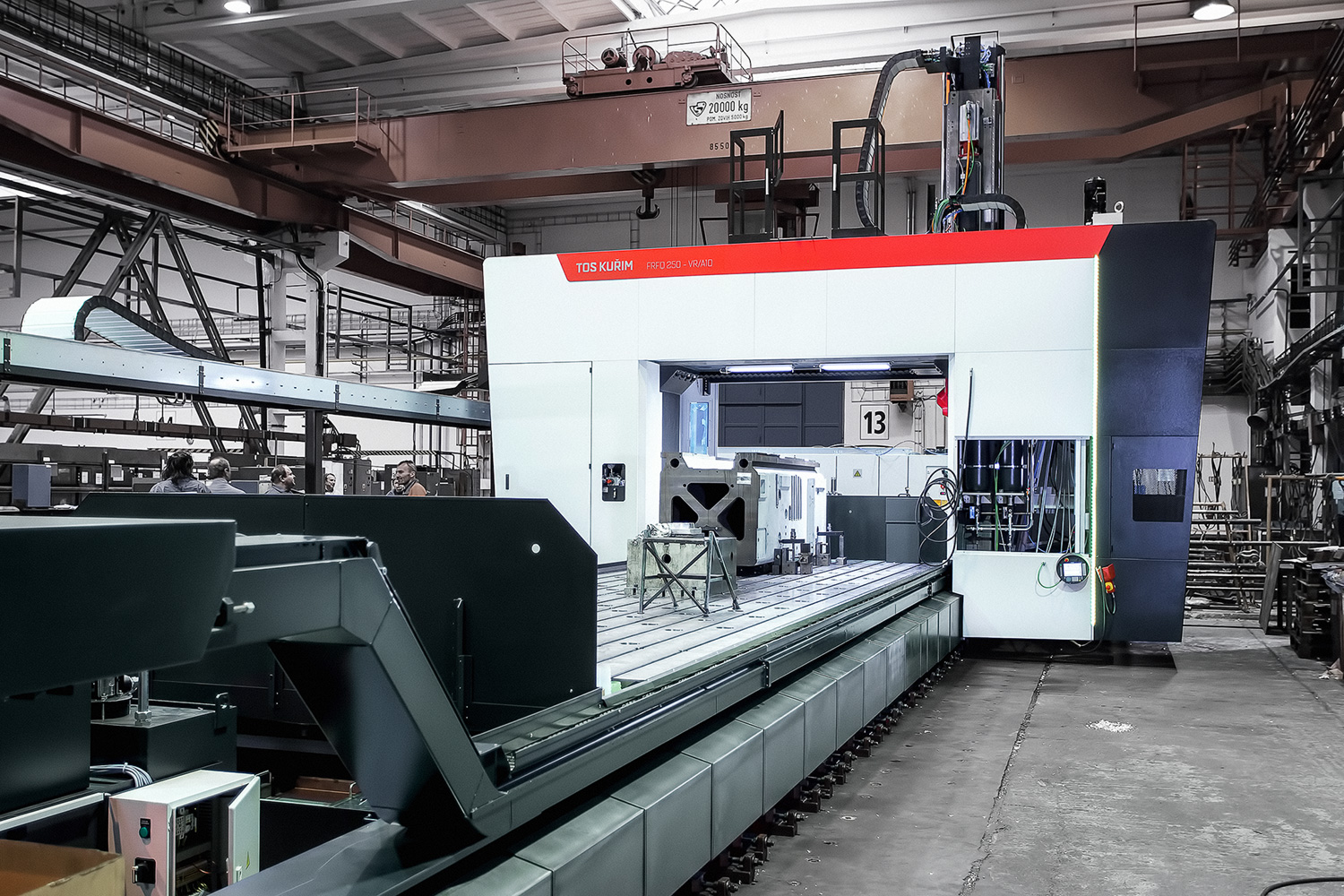

The FRF bed type traveling gantry can be designed with a variety of attachment heads, table width and length configurations, for the most demanding large part production environment.

General Specifications

Working Range Axis Travel X 157" to 945" (4,000 to 24,000 mm)
Axis Travel Y 114" to 193" (2,900 to 4,900 mm)
Distance Between Columns 100" to 179" (2,550 to 4,550 mm)
Table Width 78" to 157" (2,000 to 4,000 mm)
Axis Travel Z Ram 59" (1,500 mm)
Ram Size 20 x 20" (500 x 500 mm)
Clearance Under Rail 80" (2,050 mm)
Feed Rate/Rapid Rates Linear Axis 787 IPM (20 M/min)
Spindle Power Spindle Speed 4,000 or 6,000 RPM
Spindle Power 50 HP (37 kW)
Spindle Torque 1,476 ft-lbs. (2,000 Nm)
Spindle Connection CAT 50, HSK 100
Automatic Tool Changer Capacity 40 or 60 tools

Available Options:

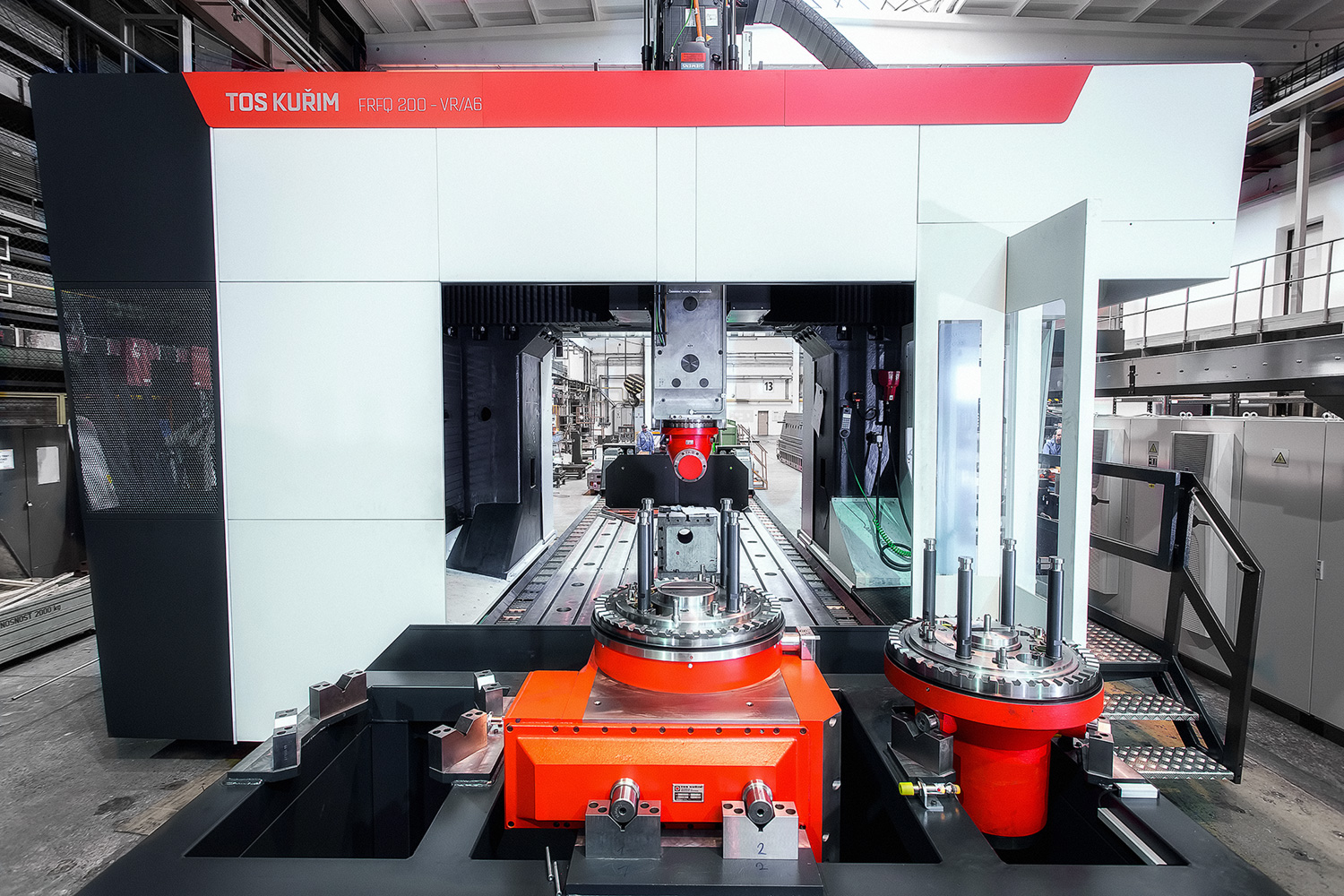

  • Automatic Changeable Heads
  • Tool Changers
  • Head Storage
  • Coolant Systems
  • Tool Probe
  • Part Probe
