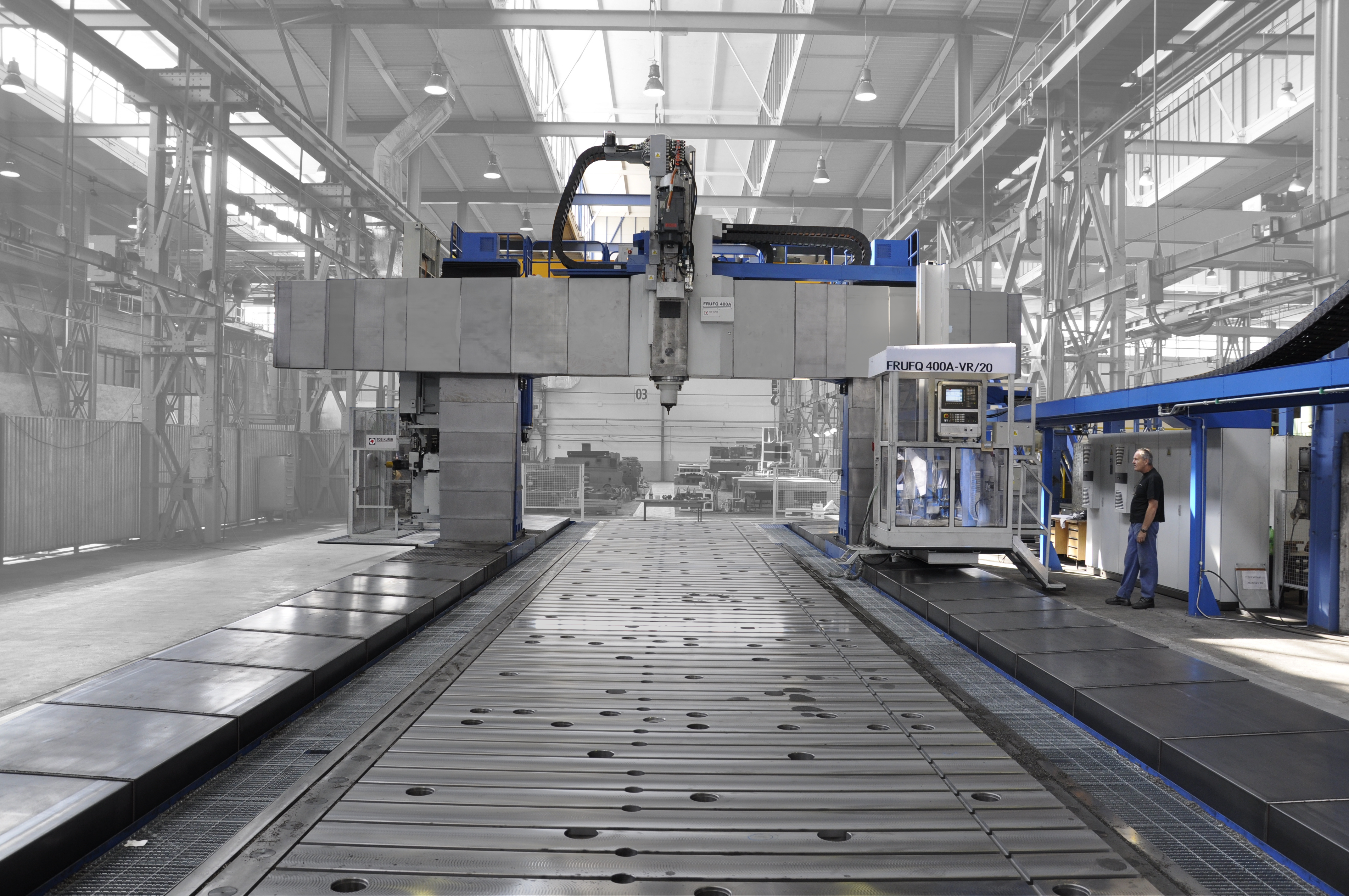

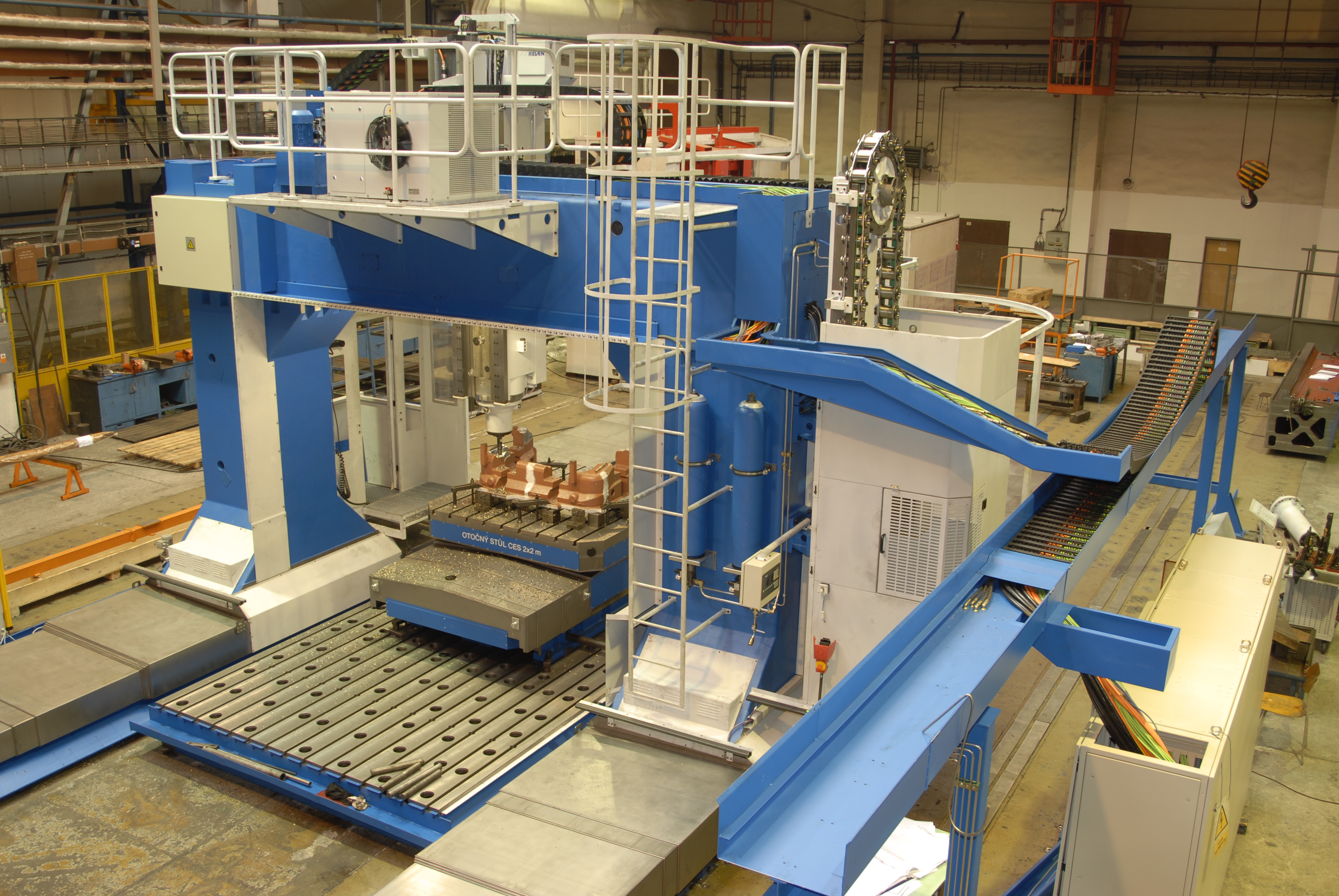

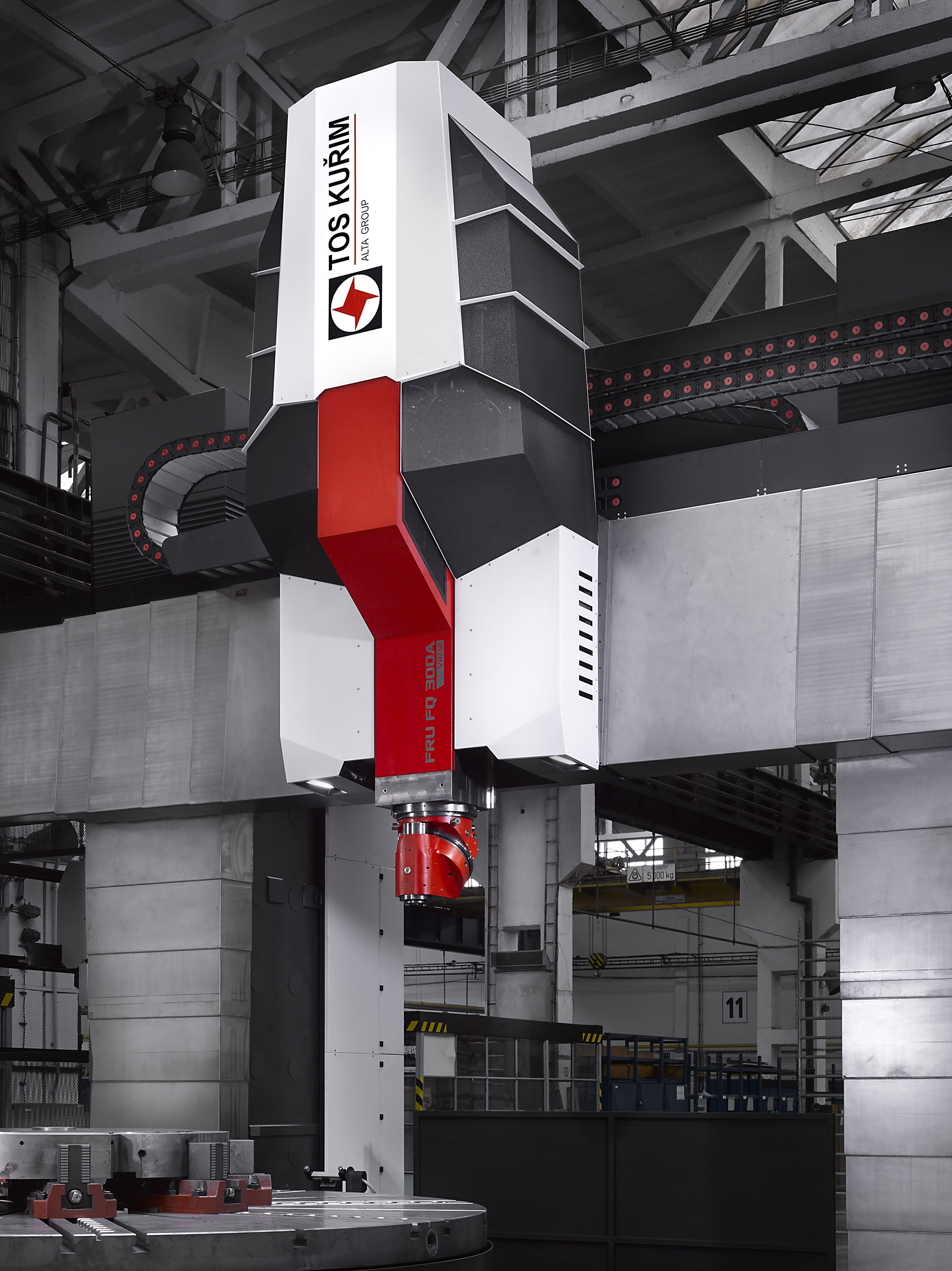

FRU TRAVELING GANTRY
The TOS KURIM FRU series of Traveling Gantry Machines can utilize either a 100% Hydrostatic or 100% linear guide way system for superior heavy-duty cutting over the full volume of the work cube
The FRU traveling gantry can be designed with a variety of attachment heads, floor plate configurations, turning tables and either a fixed or adjustable rail for the most demanding large part production environment.
General Specifications
| Working Range | Axis Travel X | 157" to 945" (4,000 to 24,000 mm) |
| Axis Travel Y | 137" to 423" (3,500 to 10,750 mm) | |
| Distance Between Columns | 118" to 354" (3,000 to 9,000 mm) | |
| Axis Travel Z Ram | 59" (1,500 mm) or 78" (2,000 mm) | |
| Ram Size | 20" x 20" (500 x 500 mm) | |
| Clearance Under Rail | 80" (2,050 mm) | |
| Cross Rail Movement - Option | 78" to 149" (2,000 to 3,800 mm) | |
| Feed Rate/Rapid Rates | Linear Axis | 787 IPM (20 M/min) |
| Spindle Power | Spindle Speed | 4,000 to 6,000 RPM |
| Spindle Power | 50 HP (37 kW), Options to 150 HP (113 kW) | |
| Spindle Torque | 1,476 ft-lbs. (2,000 NM) | |
| Spindle Connection | CAT 50, HSK 100 | |
| Automatic Tool Changer | Capacity | 40 - 120 tools |
Available Options:

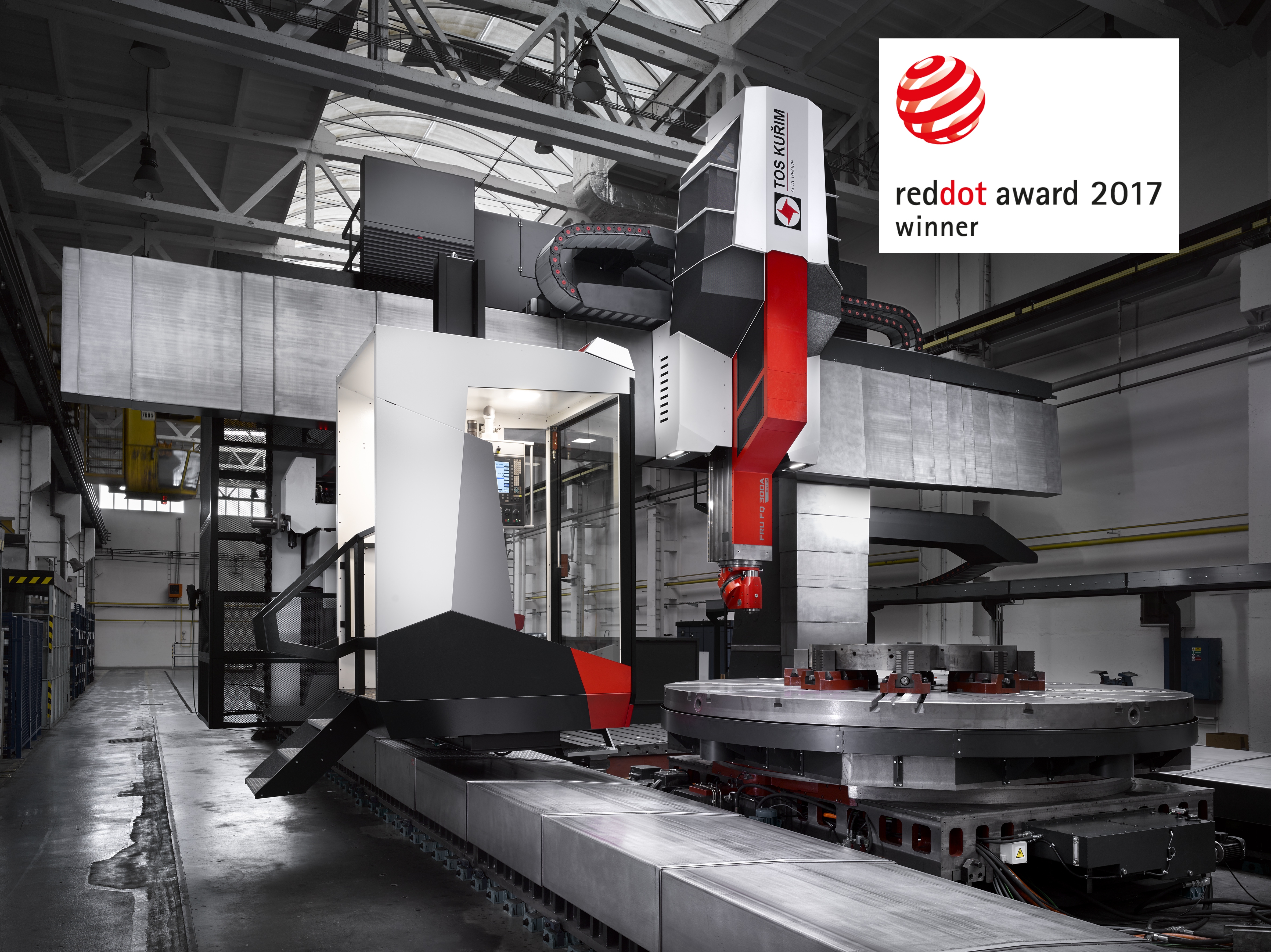

- Turning Table

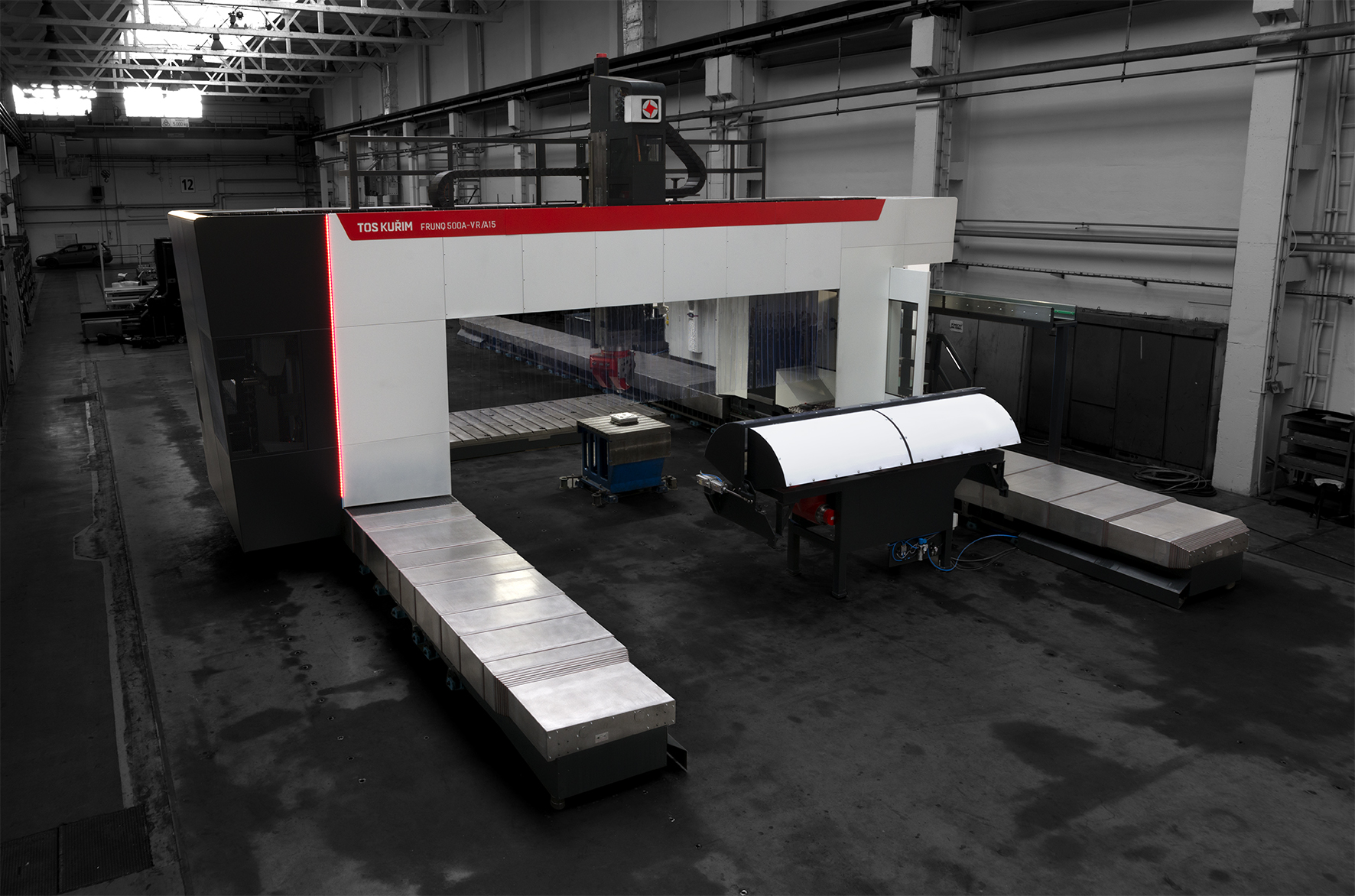

- Automatic Changeable Heads
- Adjustable Cross Rail
- Tool Changers
- Head Storage
- Coolant Systems
- Tool Probe
- Part Probe
